Package Including:
Home Alarm System Main Panel * 1 Pcs
Built-in Antenna Wireless PIR Infrared Detector * 5 Pcs
Built-in Antenna Wireless Door / Windows Sensor * 6 Pcs
Built-in Antenna Metal Remote Control * 3 Pcs
Wired Siren * 1 Pcs(110dB)
Wireless Indoor Strobe Light Siren * 1Pcs(135dB)
AC Adapter * 1 Pcs(US/Euro/UK/AU Power Plug, after make the payment, send me a message tell me which plug you like.)
English User Manuel * 1 Pcs

Question & Answer:
Q: Can this alarm system work with WIFI and GSM Sim Card together? So if the WIFI failure, can switch GSM/GPRS mode to work.
A:Yes. User can connect alarm system with WIFI and GSM Sim Card to work. And when Alarm System be triggered, it will push alarm message to the APP via WIFI. And if the WIFI failure, will change GSM/GPRS mode auto Dial Out.
Q: It just with WIFI in my house and without GSM Sim Card,can I use this alarm system?
A: Yes. Alarm System can work in WIFI mode only.
Q: Can I add additional remote controllers, door sensors, pir sensors, smoke detectors, gas detectors or other sensors to work with this alarm system?
A: Yes. Alarm system can work up to 99 wireless sensors and wireless Siren, unlimited Wifi Camera.
Q: Does the alarm panel with backup battery?
A: Yes. Alarm system with internal rechargeable backup battery. It can support work when AC Adapt is cut.
Main Function And Feature:

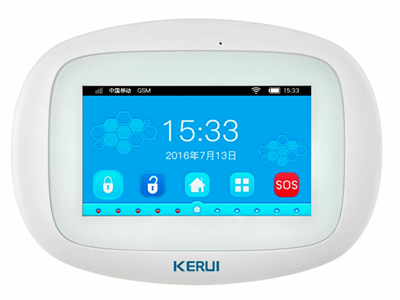

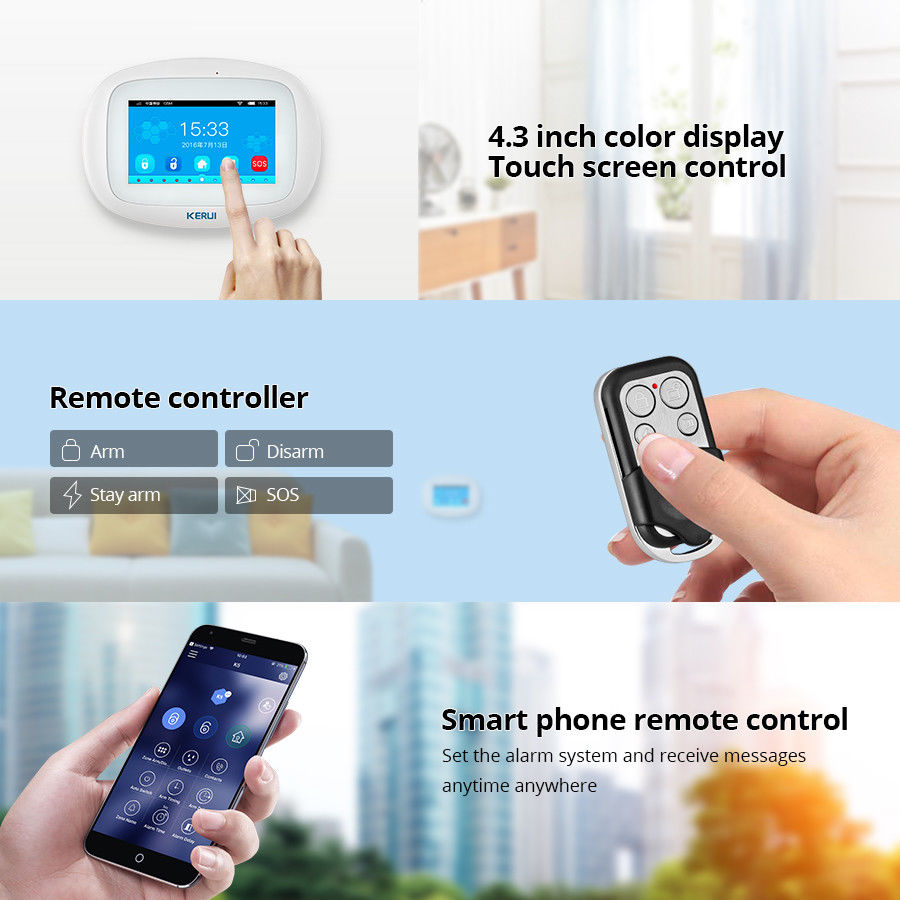

1. 4.3 inch color display, humanized menu, operation with voice prompt, easy to use

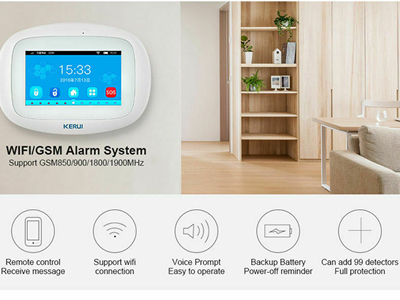

2. Support 2.4G WIFI wireless network, configuration network easy
3. Support feedback host real-time status to APP
4. App support for several K52 alarm operation .

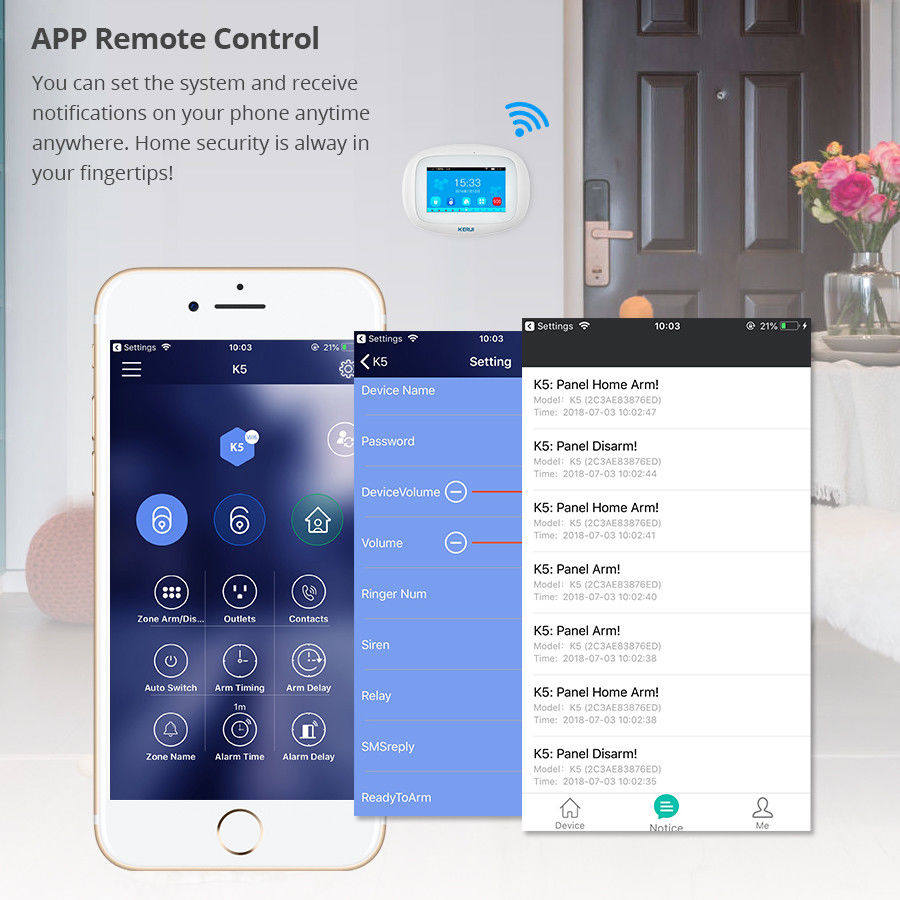

5. Mobile APP set and remote control the host, with alarm push function,support IOS / Android operating system.
6. GPRS networking function, can be uploaded host state to network alarm management, also through the network alarm management client software, remotely host arm and disarm.
7. Can set CID number, compatible with international alarm networking protocol Contact ID
8. There are 99 zones and 8 zone types optional in each zone;
ON/OFF siren in each zone is available
9. Host can be used as a normal cell phone to call other phones directly
10. To Set host through phone or SMS remotely.
11. 8 groups scheduling Arm/Disarm function, and date can be selected to avoid arm and disarm frequently manually to realize automatic control.

12. One-way alarm linkage wireless relay, and one-way wireless strobe siren
13. Control as much as 20 smart sockets through App, phone or SMS remotely, to realize appliances remote control.
14. Host dial phone number preset by user when alarms, and number never lost even power off
15. 10s automatic message recording with built-in artificial voice, so that user can know the alarm
place and zone when receive the alarm call remotely.
16. Arm/Disarm, Monitor, Speaker, siren ON/OFF, relay ON/OFF, smart socket ON/OFF remotely.
17. Wireless study 1527 series accessories, and as much as 99 detectors and remote controls.
18. Integrate high precision clock chip so that time never lost even power failure.
19. Display the latest 99 arm/disarm, alarm and card read records with unique black box function.
20. Low-voltage indication and anti-tamper of host and accessory
21. Built-in rechargeable high capacity LI battery and supply power automatically when power supply failure
22. Caller ID display, power-off reminder.
Item Specification:

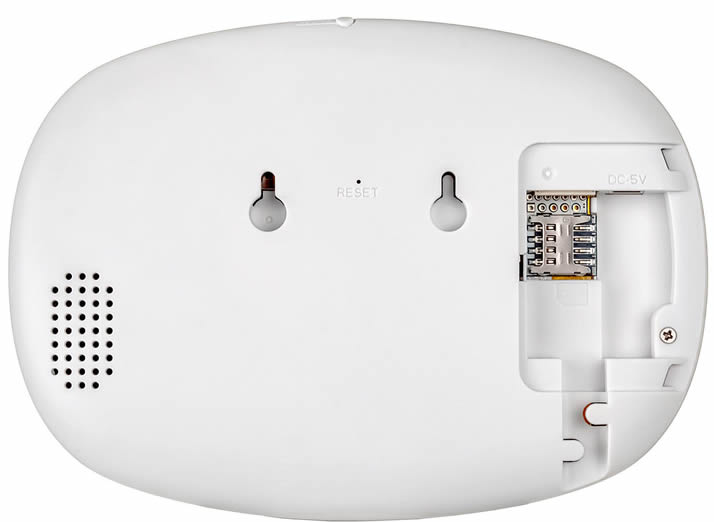

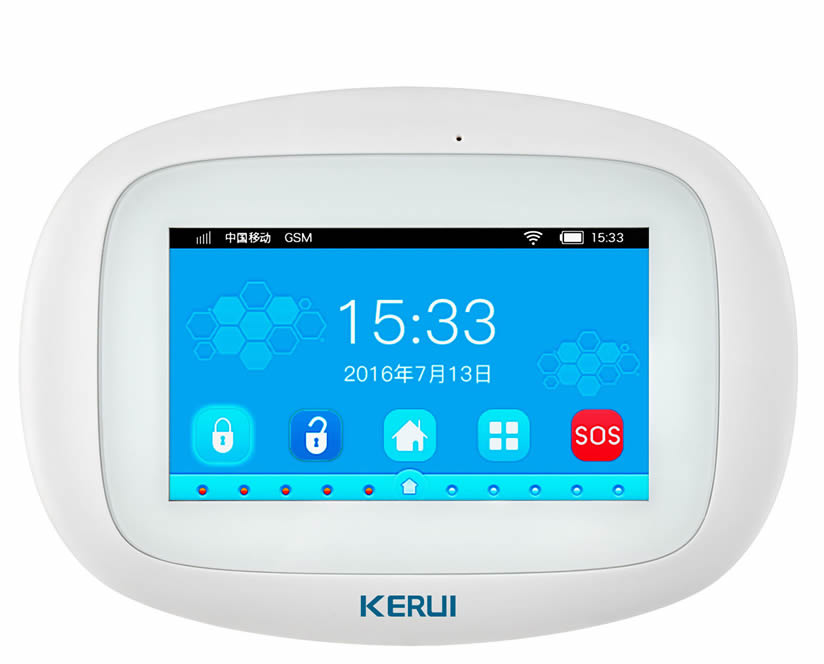

1.Home Alarm System Main Panel(Including Back-Up Battery and built-in siren)
Wireless Frequency: 433(MHz)
Built-in siren(70dB/m)
Standby Current: less than 35mA
Alarm Current: less than 120mA
GSM transmission power: 2W
WIFI Frequency: 2.4G, built-in wireless internet protocol IEE802.11b/g and TCP/IP protocol stack
WIFI receiving sensitivity: -86dbm; Emitting power: 18dbm
Input: AC100-240V, Output: DC12V-1A
Control Range:250-500 Ft(in open area)
Working Temperature: -15C~55C(5F~130F); Humidity: Less than 90%
Dimension:130*125*35mm
2.Built-in Antenna Motion PIR Infrared Detector(with DC9V Battery Included)
Wireless Frequency: 433MHz
Standby Current: less than 12uA, Alarm Current: less than 15mA
Operation Temp: -10C~50C; Humidity :<=90%
Installation Height: About 2M. Installation Angel: About 60~110
Detecting Distance: 5-8M
Transmission Time>=1s
Transmit Distance: Outdoor 100M(in open area), Indoor: 10~15M
Dimension:105mm*60mm*40mm(about 110g)
3.Built-in Antenna Door / Window Sensor(with DC12V Battery Included)
Wireless Frequency: 433MHz
Operation Current:8~15mA, Quiescent Current:3uA
Operation Temp: -10C-50C; Humidity: <=90%
Installation: less than 15mm between 2 parts.
Transmit Distance: Outdoor 100M(in open area), Indoor:10M
Dimension:71mm*36mm*15mm(about 50g)
4.Built-in Antenna Remote Control(with DC12V Battery Included)

Wireless Frequency: 433MHz
Operation Current: 10MA ,
Sending Distance: Outdoor 80~100M(in open area), Indoor: 8-10M
Operation Temp: -10C~50C; Humidity: <=90%
Dimension:58mm*37mm*14mm(about 35g)
5. Wired Siren
110dB/m
Wired connect to Main Panel
Operation Temp: -10C~50C;Humidity:<=90%
Dimension:D55mm*H55(about 75g)
6. Wireless Strobe Light Indoor Siren
135dB/m
Wireless Frequency: 433MHz
Wireless connect to Main Panel
Operation Temp: -10C~50C;Humidity:<=90%
Dimension: D75mm*H75(about 120g)
